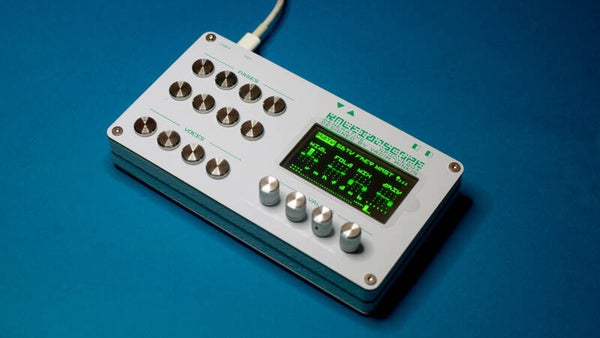

Kaleidoscope by V. Minkin
Kaleidoscope by Vadim Minkin is a compact 4-track digital multitimbral synthesizer designed for generative music creation and advanced sound exploration. The instrument combines multiple synthesis methods inside a portable standalone architecture, merging the flexibility of modular synthesis with the workflow of a modern hardware synthesizer. (Vadjuse)
Each of the four independent tracks contains its own complete synthesis voice, allowing Kaleidoscope to function simultaneously as a drum machine, drone generator, polyphonic synthesizer, experimental groovebox, or generative composition system. Tracks can operate independently with separate timbres or can be layered together for classic polyphonic synthesis. (Vadjuse)
Kaleidoscope supports several synthesis methods:
- subtractive synthesis
- additive synthesis
- FM synthesis
- physical modeling synthesis (Vadjuse)
Each track includes:
- complex digital oscillator with continuously variable waveforms
- wavefolder
- hardsync
- resonant filter
- comb filter
- overdrive processor
- FM mixer-router
- audio mixer-router (Vadjuse)
The oscillator architecture allows smooth morphing between waveform structures and includes asymmetrical wave shaping, PWM manipulation, amplitude folding, and phase folding. Through these processes, the instrument can generate harmonic textures, aggressive distorted timbres, metallic resonances, drones, percussion, and chaotic modulation structures. (Vadjuse)
One of the central features of Kaleidoscope is its integrated generative sequencer. The system is based on functional methods of trigger and control signal generation and operates as an extension of the synthesis engine rather than as a traditional step sequencer. Envelopes can exchange triggers, self-cycle as low-frequency oscillators, generate evolving rhythmic structures, and create parametric arpeggios with modulation quantization. (Vadjuse)
Kaleidoscope also features a three-dimensional modulation matrix. Unlike conventional synthesizers where modulators are assigned only to parameters, Kaleidoscope allows modulation routing between parameters across different tracks. Multiple modulation sources can affect the same destination simultaneously, including the creation of positive and negative feedback networks. (Vadjuse)
The instrument contains:
- 4 independent synthesis tracks
- multitimbral architecture
- 128 preset memory slots

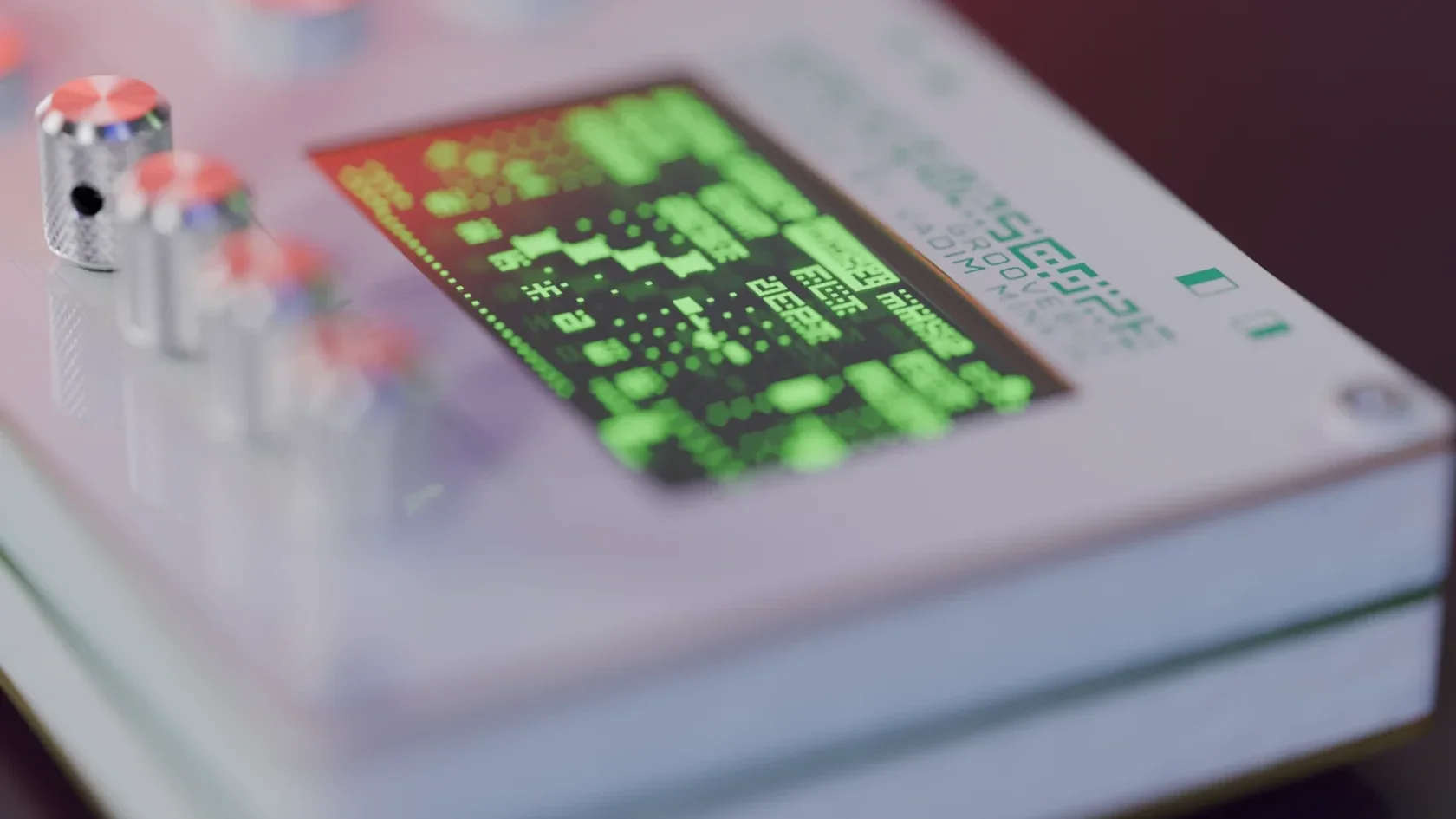

- OLED display (128 × 64)
- USB Type-C connectivity
- MIDI TRS Type-A input and output
- 4 configurable mono audio outputs grouped into TRS pairs
- preset import/export functionality
- firmware update support
- USB or power bank operation (Vadjuse)
The interface is based on a page-oriented control system with parameter visualization for all four tracks simultaneously. Real-time modulation states and routing relationships are continuously displayed on the screen, emphasizing performative interaction and deep sound experimentation. (Vadjuse)
Developed by Vadim Minkin, Kaleidoscope represents a hybrid approach to sound design where generative behavior, modulation feedback, and algorithmic control become part of the compositional process itself. The instrument functions simultaneously as a synthesizer, generative sequencer, and experimental sound laboratory. (Vadjuse)
